Enzyme science · Deep dive

Glucose isomerase: structure, mechanism and industrial uses

Glucose isomerase: EC 5.3.1.5, molecular weight, subunits, reaction mechanism, natural sources, production, history and industrial uses.

Core properties at a glance

EC classificationEC 5.3.1.5
Natural source of the modelStreptomyces olivochromogenes
Molecular weight of the exampleApproximately 42.8 kDa for the deposited protein entity (one polypeptide; PDB 1XYA). This is not whole-formulation mass or a measured glycosylated mass.
Monomer, dimer or multimer?Homotetramer (4 subunits), as annotated for PDB 1XYA biological assembly 1. UniProt P15587 describes the protein as: Homotetramer.
Structural expression hostNot separately specified in this structural record; do not infer a recombinant host.

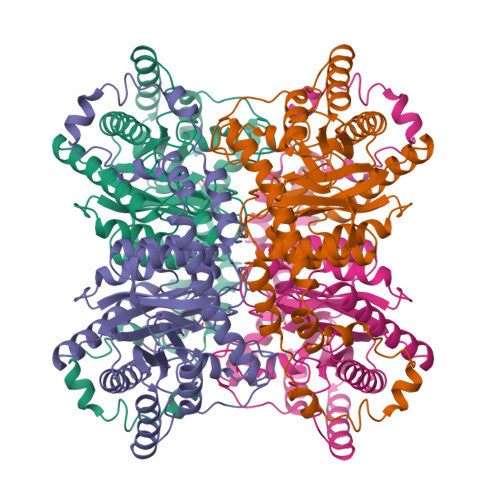

Model and experimental resolutionPDB 1XYA; 1.81 Å X-ray diffraction; representative chain A.
D-glucoseD-fructose, reversibly

What is glucose isomerase?

Industrial glucose isomerase is commonly a xylose isomerase that also converts glucose to fructose. It is a metal-dependent isomerase rather than an oxidase or hydrolase.

The accepted EC name is xylose isomerase. Glucose-isomerase activity does not imply peroxide formation.

The key idea

Catalysis speeds the approach to equilibrium; enzyme dose alone does not set the final equilibrium composition.

[3]

Core properties and EC classification

An EC number classifies a catalysed reaction. It does not specify a production strain, amino-acid sequence, preparation purity or operating optimum. Related proteins can perform the same classified reaction, while a commercial activity name may cover several reactions.

· Classification · Accepted activity · Reaction scope

· EC 5.3.1.5 · xylose isomerase · α- D -xylopyranose = α- D -xylufuranose

· Substrate / system · Chemical distinction · Practical interpretation

· Glucose to fructose · Aldose–ketose interconversion · Same carbon count

· Xylose to xylulose · Reaction underlying xylose-isomerase nomenclature · Different substrate pair

· Saccharification · Hydrolysis of larger carbohydrates · Not the isomerase reaction

[3]

Molecular weight: monomer, dimer or multimer?

A monomer contains one protein subunit; a homodimer contains two copies of the same subunit, and a higher oligomer contains more. A protein domain is a region within a chain, not an additional subunit. Likewise, mixing enzymes in a bottle does not establish that they form a stable molecular complex.

· Property of the named example · Evidence and interpretation

· Molecular weight of the example · Approximately 42.8 kDa for the deposited protein entity (one polypeptide; PDB 1XYA). This is not whole-formulation mass or a measured glycosylated mass.

· Monomer, dimer or multimer? · Homotetramer (4 subunits), as annotated for PDB 1XYA biological assembly 1. UniProt P15587 describes the protein as: Homotetramer.

· Model and experimental resolution · PDB 1XYA; 1.81 Å X-ray diffraction; representative chain A.

· Deposited protein sequence · 386 residues in the experimental entity; unresolved coordinates and biological processing are separate considerations.

The mass above is the deposited polypeptide-entity value. Glycosylation, precursor processing, linkers or omitted domains can change the experimentally observed mass. SDS–PAGE primarily informs denatured subunit size; native assembly needs evidence such as SEC–MALS, analytical ultracentrifugation or an appropriate structural analysis. The viewer shows one selected chain for clarity, not necessarily the complete biological assembly.

[1][2]

FROM MOLECULE TO APPLICATIONCatalysis speeds the approach to equilibrium; enzyme dose alone does not set the final equilibrium composition.

Natural sources and fermentation hosts

Streptomyces and other bacteria provide important examples. Xylose can be the natural metabolic substrate even when industrial use focuses on glucose. The displayed enzyme comes from Streptomyces olivochromogenes.

Microbial fermentation is followed by recovery and frequently immobilisation for repeated or continuous operation. Intracellular and whole-cell-derived preparations differ from secreted enzymes; carrier properties also influence performance.

· Term · What it means in this report

· Natural donor of the model · Streptomyces olivochromogenes — the organism associated with the displayed protein sequence.

· Expression host of the structural sample · Not separately specified in this structural record; do not infer a recombinant host.

· Manufacturing route · Microbial fermentation is followed by recovery and frequently immobilisation for repeated or continuous operation. Intracellular and whole-cell-derived preparations differ from secreted enzymes; carrier properties also influence performance.

· Supplied product · Use the linked product documentation for the actual grade, activity assay and declared source. A structural example does not establish the manufacturing organism or purity of the supplied preparation.

[1]

Reaction mechanism and structure–function relationships

Ring opening, metal-assisted carbonyl rearrangement and ring closure interconvert aldose and ketose sugars. Structural studies support a hydride-transfer pathway in well-studied examples. Divalent metals support catalysis and stability. More enzyme accelerates approach to equilibrium but does not independently change the equilibrium limit.

THE REACTION, STEP BY STEP

1

Bind the sugar and enable ring opening

2

Rearrange the carbonyl with metal-assisted catalysis

3

Release the isomerised sugar after ring closure

D-glucose→D-fructose, reversibly

Conceptual reaction pathway; the stages describe function rather than atomic geometry.

From active-site chemistry to a useful process

Catalysis speeds the approach to equilibrium; enzyme dose alone does not set the final equilibrium composition. Compare a time course at two catalyst loadings under otherwise identical conditions. Faster initial conversion with similar long-time composition illustrates the distinction between rate and equilibrium. Verify stability before interpreting a plateau.

The catalytic mechanism explains which chemical transformation is possible. It does not, by itself, establish the rate in a complex material. Substrate presentation, reaction-medium composition and retention of the active fold determine whether that chemistry can proceed usefully under the chosen conditions. This is why a defined-substrate activity measurement and an application trial provide complementary evidence.

[2][3]

Discovery and scientific milestones

Discovery, purification, structural characterisation and industrial adoption are different historical milestones. The named studies below identify specific contributions; a publication date is not automatically the first discovery of every activity covered by the enzyme name.

1954

Biochemical and historical context

Hochster and Watson reported enzymatic xylose-to-xylulose isomerisation in 1954. Later substrate-scope and structural studies supported industrial glucose conversion.

[3]1994

Lavie and colleagues: molecular characterisation

The primary study associated with PDB 1XYA is “X-ray crystallographic structures of D-xylose isomerase-substrate complexes position the substrate and provide evidence for metal movement during catalysis.”. The experimental structure links the named protein to a concrete molecular model, allowing its fold, substrate-binding region and assembly to be examined rather than inferred from the general enzyme name.

[2]

Major industrial applications and research uses

Fructose-syrup manufacture is a major application. Xylose-fermentation research uses the enzyme to connect xylose to downstream metabolism. Packed-bed operation requires control of metals, diffusion and gradual activity loss.

01

Fructose syrups

Convert part of the glucose into fructose.

Measure success: Track sugar ratio and operational stability.

02

Immobilised processing

Retain catalyst in a continuous system.

Measure success: Measure residence time, diffusion and activity loss.

03

Fermentation research

Connect xylose to metabolism through xylulose.

Measure success: Separate enzyme conversion from cellular uptake.

A research use, a development-stage process and an established commercial application do not imply the same level of readiness. Match the preparation to the target matrix and required grade, then validate the specific outcome described above. The product links below provide the route from this scientific overview to a defined supplied formulation.

Activity assays and interpreting experimental results

Resolve glucose/fructose or xylose/xylulose analytically and report both rate and endpoint composition. For immobilised material, specify the carrier basis and consider diffusion limitations.

A useful experiment for this enzyme

Compare a time course at two catalyst loadings under otherwise identical conditions. Faster initial conversion with similar long-time composition illustrates the distinction between rate and equilibrium. Verify stability before interpreting a plateau.

· Experimental question · Evidence to collect

· Is the enzyme active? · Measure an initial rate with a defined substrate, blank correction and a stated activity-unit definition.

· Does it work on this material? · Track sugar ratio and operational stability.

· Is the preparation stable? · Measure residual activity after a specified exposure, separately from activity during the exposure.

· Is the product what you intended? · Measure residence time, diffusion and activity loss.

Keep enzyme loading, substrate amount, mixing, temperature and sampling time explicit. Use a no-enzyme control to capture non-enzymatic changes and a suitable analytical blank for colour, background sugars, peptides or other interfering components. A time course is more informative than one endpoint when the reaction slows, because substrate depletion, loss of activity and product effects can produce similar plateaus.

Reading kinetic and operating data

Compare reported pH and temperature optima only when substrate and assay duration are comparable. An optimum describes the measured rate within an experiment; it is not a guarantee of long-incubation stability. For heterogeneous substrates, changes in accessibility can also affect apparent kinetic behaviour. Cite the protein, substrate and conditions alongside any kinetic constant rather than treating it as a universal property of the enzyme name.

[3]

Common questions

Are glucose isomerase and xylose isomerase related names?

Yes; industrial glucose-isomerase use commonly relies on enzymes classified for xylose isomerisation.

Will doubling the dose double final fructose?

It may accelerate conversion but does not independently change equilibrium.

Why report metal composition?

Divalent metals affect catalysis and stability in the characterised enzymes.

Continue exploring

Glucose Isomerase for Fructose Syrup: Feed Quality and Conversion ↗ALDC deep dive ↗Phytase deep dive ↗DNase deep dive ↗

References and supporting evidence (6)

Research and manufacturer examples support the application rationale; they do not establish identical performance for every commercial preparation.

  1. RCSB PDB 1XYA: experimental coordinates, source and assembly

    Protein-entity mass, coordinate model, experimental method and deposited biological assembly; checked 23 September 2026.

  2. Lavie, A.; Allen, K.N.; Petsko, G.A.; Ringe, D. (1994). X-ray crystallographic structures of D-xylose isomerase-substrate complexes position the substrate and provide evidence for metal movement during catalysis.

    Biochemistry 33:5469–5480. Primary experimental structural publication.

  3. IUBMB enzyme nomenclature: EC 5.3.1.5

    Accepted reaction, classification and historical bibliography. An EC entry is not a supplier specification.

  4. UniProt P15587: protein annotation

    Curated protein identity and available subunit annotation; compare with the particular structural construct.

  5. Hochster, R.M. and Watson, R.W. Enzymatic isomerization of D -xylose to D -xylulose. Arch. Biochem. Biophys. 48 (1954) 120-129.

    Primary study listed in the IUBMB nomenclature bibliography.

  6. Yamanaka, K. Purification, crystallization and properties of the D -xylose isomerase from Lactobacillus brevis. Biochim. Biophys. Acta 151 (1968) 670-680.

    Primary study listed in the IUBMB nomenclature bibliography.
