What is maltogenic amylase?
Maltogenic amylase is studied for its ability to modify starch and generate maltose-rich products. In baking, suitable enzymes alter the starch structures involved in crumb firming during storage.
Maltogenic amylase and beta-amylase can both yield maltose, but their catalytic families, substrate interactions and processing behaviour differ. A product trade description is not an additional EC number.
The key idea
The useful outcome in bread is controlled starch modification without excessive crumb breakdown.
[3]
Core properties and EC classification
An EC number classifies a catalysed reaction. It does not specify a production strain, amino-acid sequence, preparation purity or operating optimum. Related proteins can perform the same classified reaction, while a commercial activity name may cover several reactions.
· Classification · Accepted activity · Reaction scope
· EC 3.2.1.133 · glucan 1,4-α-maltohydrolase · hydrolysis of (1→4)-α- D -glucosidic linkages in polysaccharides so as to remove successive α-maltose residues from the non-reducing ends of the chains
· Substrate / system · Chemical distinction · Practical interpretation
· Maltogenic amylase · Starch modification with maltose-rich products · Crumb-texture management
· Liquefying alpha-amylase · Broad internal starch cleavage · Viscosity and starch breakdown
· Beta-amylase · Exo maltose release · Different substrate architecture and processing behaviour
[3]
Molecular weight: monomer, dimer or multimer?
A monomer contains one protein subunit; a homodimer contains two copies of the same subunit, and a higher oligomer contains more. A protein domain is a region within a chain, not an additional subunit. Likewise, mixing enzymes in a bottle does not establish that they form a stable molecular complex.
· Property of the named example · Evidence and interpretation

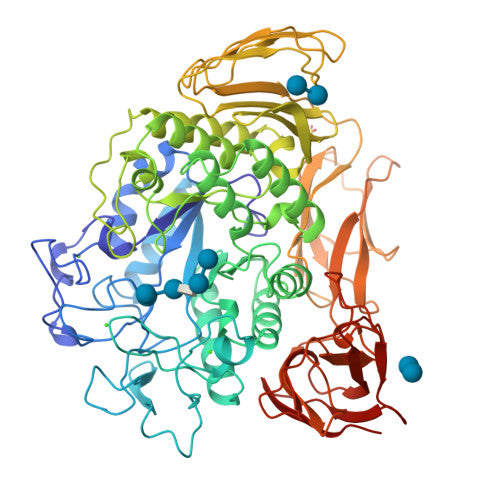

· Molecular weight of the example · Approximately 75.2 kDa for the deposited protein entity (one polypeptide; PDB 1QHO). This is not whole-formulation mass or a measured glycosylated mass.
· Monomer, dimer or multimer? · Monomer, as annotated for PDB 1QHO biological assembly 1. UniProt P19531 describes the protein as: Monomer.
· Model and experimental resolution · PDB 1QHO; 1.7 Å X-ray diffraction; representative chain A.
· Deposited protein sequence · 686 residues in the experimental entity; unresolved coordinates and biological processing are separate considerations.
The mass above is the deposited polypeptide-entity value. Glycosylation, precursor processing, linkers or omitted domains can change the experimentally observed mass. SDS–PAGE primarily informs denatured subunit size; native assembly needs evidence such as SEC–MALS, analytical ultracentrifugation or an appropriate structural analysis. The viewer shows one selected chain for clarity, not necessarily the complete biological assembly.
[1][2]
FROM MOLECULE TO APPLICATIONThe useful outcome in bread is controlled starch modification without excessive crumb breakdown.
Natural sources and fermentation hosts
Thermophilic bacteria, including Geobacillus stearothermophilus, provide well-studied examples. Older publications use the name Bacillus stearothermophilus. Enzymes marketed under application names such as maltogenase require a defined activity identity before a particular mechanism can be assigned.
Industrial maltogenic amylases are produced by microbial fermentation, commonly using bacterial production systems. The natural donor organism may differ from the manufacturing strain. Thermostability and activity during baking depend on the selected protein and formulation, rather than on the source name alone.
· Term · What it means in this report
· Natural donor of the model · Geobacillus stearothermophilus — the organism associated with the displayed protein sequence.
· Expression host of the structural sample · Bacillus subtilis
· Manufacturing route · Industrial maltogenic amylases are produced by microbial fermentation, commonly using bacterial production systems. The natural donor organism may differ from the manufacturing strain. Thermostability and activity during baking depend on the selected protein and formulation, rather than on the source name alone.
· Supplied product · Use the linked product documentation for the actual grade, activity assay and declared source. A structural example does not establish the manufacturing organism or purity of the supplied preparation.
[1]
Reaction mechanism and structure–function relationships
Maltogenic alpha-amylases are retaining glycoside hydrolases. The five-domain Geobacillus enzyme illustrated here has a GH13 catalytic apparatus and a substrate-binding architecture distinct from many conventional liquefying alpha-amylases. Product profiles depend on substrate length and reaction conditions; hydrolysis and transfer reactions can compete in some members. The word maltogenic describes a tendency in products, not proof that only maltose is formed.
THE REACTION, STEP BY STEP
1
Engage suitable starch chains
2
Hydrolyse bonds through retaining catalysis
3
Alter chain distribution and generate maltose-rich products
Starch and maltooligosaccharides + water→Maltose-rich hydrolysis products
Conceptual reaction pathway; the stages describe function rather than atomic geometry.
From active-site chemistry to a useful process
The useful outcome in bread is controlled starch modification without excessive crumb breakdown. Use a dose series within the product guidance and keep flour, hydration, proofing and baking fixed. Measure texture at several storage times. Include an untreated loaf so normal moisture redistribution is not mistaken for an enzyme effect.
The catalytic mechanism explains which chemical transformation is possible. It does not, by itself, establish the rate in a complex material. Substrate presentation, reaction-medium composition and retention of the active fold determine whether that chemistry can proceed usefully under the chosen conditions. This is why a defined-substrate activity measurement and an application trial provide complementary evidence.
[2][3]
Discovery and scientific milestones
Discovery, purification, structural characterisation and industrial adoption are different historical milestones. The named studies below identify specific contributions; a publication date is not automatically the first discovery of every activity covered by the enzyme name.
1984
Biochemical and historical context
Outtrup and Norman described a recombinant bacterial maltogenic amylase and its applications in 1984. Diderichsen and Christiansen reported cloning work in 1988.
[3]1999
Dauter and colleagues: molecular characterisation
The primary study associated with PDB 1QHO is “X-ray structure of Novamyl, the five-domain "maltogenic" alpha-amylase from Bacillus stearothermophilus: maltose and acarbose complexes at 1.7A resolution.”. The experimental structure links the named protein to a concrete molecular model, allowing its fold, substrate-binding region and assembly to be examined rather than inferred from the general enzyme name.
[2]
Major industrial applications and research uses
Bread and other baked goods use selected maltogenic amylases to influence starch retrogradation and crumb softness. Starch processing can exploit maltose formation. The useful baking dose depends on flour, process time, temperature history and other enzymes; softness should be assessed alongside gumminess, resilience and sensory quality.
01
Bread softness
Modify the starch contribution to firming during storage.
Measure success: Measure firmness together with resilience and gumminess.
02
Baked-product development
Balance enzyme action against the heating profile.
Measure success: Assess fresh and stored crumb under identical packaging.
03
Starch conversion
Investigate maltose-rich product distributions.
Measure success: Resolve individual sugars rather than total reducing power.
A research use, a development-stage process and an established commercial application do not imply the same level of readiness. Match the preparation to the target matrix and required grade, then validate the specific outcome described above. The product links below provide the route from this scientific overview to a defined supplied formulation.
Activity assays and interpreting experimental results
For starch research, resolve maltose and other saccharides chromatographically. For baking, pair a defined enzyme assay with crumb texture measurements over storage and, when available, differential scanning calorimetry. A rapid soluble-substrate assay does not by itself predict performance in a baked starch–protein matrix.
A useful experiment for this enzyme
Use a dose series within the product guidance and keep flour, hydration, proofing and baking fixed. Measure texture at several storage times. Include an untreated loaf so normal moisture redistribution is not mistaken for an enzyme effect.
· Experimental question · Evidence to collect
· Is the enzyme active? · Measure an initial rate with a defined substrate, blank correction and a stated activity-unit definition.
· Does it work on this material? · Measure firmness together with resilience and gumminess.
· Is the preparation stable? · Measure residual activity after a specified exposure, separately from activity during the exposure.
· Is the product what you intended? · Assess fresh and stored crumb under identical packaging.
Keep enzyme loading, substrate amount, mixing, temperature and sampling time explicit. Use a no-enzyme control to capture non-enzymatic changes and a suitable analytical blank for colour, background sugars, peptides or other interfering components. A time course is more informative than one endpoint when the reaction slows, because substrate depletion, loss of activity and product effects can produce similar plateaus.
Reading kinetic and operating data
Compare reported pH and temperature optima only when substrate and assay duration are comparable. An optimum describes the measured rate within an experiment; it is not a guarantee of long-incubation stability. For heterogeneous substrates, changes in accessibility can also affect apparent kinetic behaviour. Cite the protein, substrate and conditions alongside any kinetic constant rather than treating it as a universal property of the enzyme name.
[3]
Common questions
Is softer crumb always better performance?
No. Excessive modification can make crumb gummy or structurally weak.
Is maltogenic amylase identical to beta-amylase?
No. Similar products do not imply identical catalytic families or behaviour.
Can a room-temperature assay predict baking performance?
Only partly; substrate state and the changing temperature profile are central.
