Enzyme science · Deep dive

Papain: structure, mechanism and industrial uses

Papain: EC 3.4.22.2, molecular weight, subunits, reaction mechanism, natural sources, production, history and industrial uses.

Core properties at a glance

EC classificationEC 3.4.22.2
Natural source of the modelCarica papaya
Molecular weight of the exampleApproximately 23.5 kDa for the deposited protein entity (one polypeptide; PDB 9PAP). This is not whole-formulation mass or a measured glycosylated mass.
Monomer, dimer or multimer?Monomer, as annotated for PDB 9PAP biological assembly 1.
Structural expression hostNot separately specified in this structural record; do not infer a recombinant host.

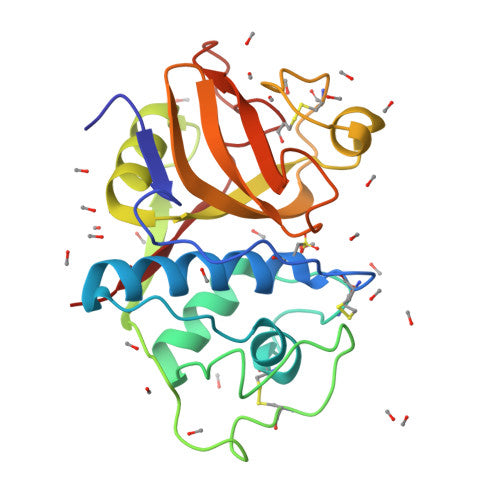

Model and experimental resolutionPDB 9PAP; 1.65 Å X-ray diffraction; representative chain A.
Protein peptide bonds + waterSmaller peptides

What is papain?

Papain is a plant cysteine protease associated with papaya latex. It is a classic model for protease chemistry and a useful enzyme for controlled protein hydrolysis.

Papain is a cysteine protease, whereas proteinase K is a serine protease. Their inhibitor sensitivities and processing requirements differ.

The key idea

Papain combines broad peptide cleavage with a catalytic thiol whose chemical state matters.

[3]

Core properties and EC classification

An EC number classifies a catalysed reaction. It does not specify a production strain, amino-acid sequence, preparation purity or operating optimum. Related proteins can perform the same classified reaction, while a commercial activity name may cover several reactions.

· Classification · Accepted activity · Reaction scope

· EC 3.4.22.2 · papain · Hydrolysis of proteins with broad specificity for peptide bonds, but preference for an amino acid bearing a large hydrophobic side chain at the P2 position. Does not accept Val in P1'

· Substrate / system · Chemical distinction · Practical interpretation

· Papain · Cysteine-protease chemistry · Plant-derived example

· Subtilisin · Serine-protease chemistry · Different fold and catalytic residues

· Protein-glutaminase · Side-chain deamidation · Does not perform the same backbone cleavage

[3]

Molecular weight: monomer, dimer or multimer?

A monomer contains one protein subunit; a homodimer contains two copies of the same subunit, and a higher oligomer contains more. A protein domain is a region within a chain, not an additional subunit. Likewise, mixing enzymes in a bottle does not establish that they form a stable molecular complex.

· Property of the named example · Evidence and interpretation

· Molecular weight of the example · Approximately 23.5 kDa for the deposited protein entity (one polypeptide; PDB 9PAP). This is not whole-formulation mass or a measured glycosylated mass.

· Monomer, dimer or multimer? · Monomer, as annotated for PDB 9PAP biological assembly 1.

· Model and experimental resolution · PDB 9PAP; 1.65 Å X-ray diffraction; representative chain A.

· Deposited protein sequence · 212 residues in the experimental entity; unresolved coordinates and biological processing are separate considerations.

The mass above is the deposited polypeptide-entity value. Glycosylation, precursor processing, linkers or omitted domains can change the experimentally observed mass. SDS–PAGE primarily informs denatured subunit size; native assembly needs evidence such as SEC–MALS, analytical ultracentrifugation or an appropriate structural analysis. The viewer shows one selected chain for clarity, not necessarily the complete biological assembly.

[1][2]

FROM MOLECULE TO APPLICATIONPapain combines broad peptide cleavage with a catalytic thiol whose chemical state matters.

Natural sources and fermentation hosts

Carica papaya latex is the established natural source. Latex contains several proteases, so purified papain differs from a crude papaya-latex preparation.

Conventional commercial papain is commonly recovered from plant latex rather than manufactured through microbial fermentation. Recombinant expression is possible for research, but should not be presented as the default source of every papain product.

· Term · What it means in this report

· Natural donor of the model · Carica papaya — the organism associated with the displayed protein sequence.

· Expression host of the structural sample · Not separately specified in this structural record; do not infer a recombinant host.

· Manufacturing route · Conventional commercial papain is commonly recovered from plant latex rather than manufactured through microbial fermentation. Recombinant expression is possible for research, but should not be presented as the default source of every papain product.

· Supplied product · Use the linked product documentation for the actual grade, activity assay and declared source. A structural example does not establish the manufacturing organism or purity of the supplied preparation.

[1]

Reaction mechanism and structure–function relationships

A cysteine–histidine catalytic system generates a reactive thiolate that attacks peptide bonds and forms a covalent intermediate. Water resolves that intermediate. Oxidation or modification of the catalytic thiol can reduce activity. The papain fold differs from subtilisin despite both catalysing peptide hydrolysis, illustrating how unrelated protein architectures can perform similar chemistry.

THE REACTION, STEP BY STEP

1

Bind an accessible peptide sequence

2

Form a cysteine-linked acyl intermediate

3

Hydrolyse the intermediate and release fragments

Protein peptide bonds + water→Smaller peptides

Conceptual reaction pathway; the stages describe function rather than atomic geometry.

From active-site chemistry to a useful process

Papain combines broad peptide cleavage with a catalytic thiol whose chemical state matters. Use a controlled time course on the intended protein and report the chemical environment of the enzyme. Measure desired fragments or texture rather than assuming the highest soluble-peptide signal is the best result.

The catalytic mechanism explains which chemical transformation is possible. It does not, by itself, establish the rate in a complex material. Substrate presentation, reaction-medium composition and retention of the active fold determine whether that chemistry can proceed usefully under the chosen conditions. This is why a defined-substrate activity measurement and an application trial provide complementary evidence.

[2][3]

Discovery and scientific milestones

Discovery, purification, structural characterisation and industrial adoption are different historical milestones. The named studies below identify specific contributions; a publication date is not automatically the first discovery of every activity covered by the enzyme name.

1985

Biochemical and historical context

Kamphuis, Drenth and Baker compared papain and related thiol-protease structures in 1985. Their work placed papain in a structural context with actinidin, cathepsins and bromelain. This is a structure–function milestone, not the first historical use of papaya latex.

[3]1984

Kamphuis and colleagues: molecular characterisation

The primary study associated with PDB 9PAP is “Structure of papain refined at 1.65 A resolution”. The experimental structure links the named protein to a concrete molecular model, allowing its fold, substrate-binding region and assembly to be examined rather than inferred from the general enzyme name.

[2]

Major industrial applications and research uses

Food protein hydrolysis and meat tenderisation exploit broad proteolytic activity. Research uses include controlled protein fragmentation. Extent of hydrolysis must match the desired texture or fragment distribution; excessive digestion can remove useful structure.

01

Protein ingredients

Produce controlled peptide fractions.

Measure success: Measure hydrolysis and functionality.

02

Tenderisation

Modify protein structure.

Measure success: Balance softening against excessive texture loss.

03

Research fragmentation

Generate protein fragments.

Measure success: Follow digestion time and fragment distribution.

A research use, a development-stage process and an established commercial application do not imply the same level of readiness. Match the preparation to the target matrix and required grade, then validate the specific outcome described above. The product links below provide the route from this scientific overview to a defined supplied formulation.

Activity assays and interpreting experimental results

Use a specified protein or peptide assay, accounting for reducing agents and enzyme activation conditions. Measure actual substrate conversion when fragment size matters. A crude preparation can contain additional proteases with overlapping activity.

A useful experiment for this enzyme

Use a controlled time course on the intended protein and report the chemical environment of the enzyme. Measure desired fragments or texture rather than assuming the highest soluble-peptide signal is the best result.

· Experimental question · Evidence to collect

· Is the enzyme active? · Measure an initial rate with a defined substrate, blank correction and a stated activity-unit definition.

· Does it work on this material? · Measure hydrolysis and functionality.

· Is the preparation stable? · Measure residual activity after a specified exposure, separately from activity during the exposure.

· Is the product what you intended? · Balance softening against excessive texture loss.

Keep enzyme loading, substrate amount, mixing, temperature and sampling time explicit. Use a no-enzyme control to capture non-enzymatic changes and a suitable analytical blank for colour, background sugars, peptides or other interfering components. A time course is more informative than one endpoint when the reaction slows, because substrate depletion, loss of activity and product effects can produce similar plateaus.

Reading kinetic and operating data

Compare reported pH and temperature optima only when substrate and assay duration are comparable. An optimum describes the measured rate within an experiment; it is not a guarantee of long-incubation stability. For heterogeneous substrates, changes in accessibility can also affect apparent kinetic behaviour. Cite the protein, substrate and conditions alongside any kinetic constant rather than treating it as a universal property of the enzyme name.

[3]

Common questions

Is papain normally made by fermenting papaya?

The natural enzyme is associated with papaya latex and commonly recovered by extraction.

Why can oxidation matter?

Modification of the catalytic thiol can reduce activity.

Does papain have the same structure as a bacterial serine protease?

No. Similar overall reactions can be performed by unrelated folds.

Continue exploring

Papain for Protein Hydrolysis: Tenderisation and Endpoint Control ↗Acid protease deep dive ↗Neutral protease deep dive ↗Alkaline protease deep dive ↗

References and supporting evidence (5)

Research and manufacturer examples support the application rationale; they do not establish identical performance for every commercial preparation.

  1. RCSB PDB 9PAP: experimental coordinates, source and assembly

    Protein-entity mass, coordinate model, experimental method and deposited biological assembly; checked 23 September 2026.

  2. Kamphuis, I.G.; Kalk, K.H.; Swarte, M.B.; Drenth, J. (1984). Structure of papain refined at 1.65 A resolution

    J.Mol.Biol. 179:233–256. Primary experimental structural publication.

  3. IUBMB enzyme nomenclature: EC 3.4.22.2

    Accepted reaction, classification and historical bibliography. An EC entry is not a supplier specification.

  4. UniProt P00784: protein annotation

    Curated protein identity and available subunit annotation; compare with the particular structural construct.

  5. Kamphuis, I.G., Drenth, J. and Baker, E.N. Thiol proteases. Comparative studies based on the high-resolution structures of papain and actinidin, and on amino acid sequence information for cathepsins B and H, and stem bromelain. J. Mol. Biol. 182 (1985) 317-329.

    Primary study listed in the IUBMB nomenclature bibliography.
