What is inulinase?
Inulin-degrading enzymes cleave fructans, but endo- and exo-acting activities produce different products. The distinction is essential in fructose syrup and fructooligosaccharide research.
EC 3.2.1.7 is the endo-inulinase entry; EC 3.2.1.80 covers fructan beta-fructosidase activity. A generic inulinase label does not establish the endo/exo balance.
The key idea
Choosing endo or exo activity determines whether shorter fructans or free fructose dominate.
[3]
Core properties and EC classification
An EC number classifies a catalysed reaction. It does not specify a production strain, amino-acid sequence, preparation purity or operating optimum. Related proteins can perform the same classified reaction, while a commercial activity name may cover several reactions.
· Classification · Accepted activity · Reaction scope
· EC 3.2.1.7 · inulinase · Endohydrolysis of (2→1)-β- D -fructosidic linkages in inulin
· EC 3.2.1.80 · fructan β-fructosidase · Hydrolysis of terminal, non-reducing (2→1)- and (2→6)-linked β- D -fructofuranose residues in fructans For diagram of hydrolysis of the 2,6-bond, click here and the 2,1-bond, click here
· Substrate / system · Chemical distinction · Practical interpretation
· Endo-inulinase · Internal cleavage · Shorter fructooligosaccharides
· Exo-inulinase · Terminal fructosyl removal · Fructose release
· Invertase · Sucrose-focused activity · Not a substitute for verified inulin conversion
[3][4]
Molecular weight: monomer, dimer or multimer?
A monomer contains one protein subunit; a homodimer contains two copies of the same subunit, and a higher oligomer contains more. A protein domain is a region within a chain, not an additional subunit. Likewise, mixing enzymes in a bottle does not establish that they form a stable molecular complex.
· Property of the named example · Evidence and interpretation

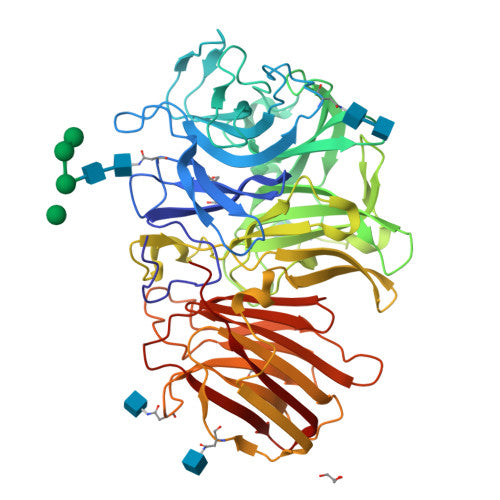

· Molecular weight of the example · Approximately 57.2 kDa for the deposited protein entity (one polypeptide; PDB 1Y9M). This is not whole-formulation mass or a measured glycosylated mass.
· Monomer, dimer or multimer? · Monomer, as annotated for PDB 1Y9M biological assembly 1.
· Model and experimental resolution · PDB 1Y9M; 1.89 Å X-ray diffraction; representative chain A.
· Deposited protein sequence · 518 residues in the experimental entity; unresolved coordinates and biological processing are separate considerations.
The mass above is the deposited polypeptide-entity value. Glycosylation, precursor processing, linkers or omitted domains can change the experimentally observed mass. SDS–PAGE primarily informs denatured subunit size; native assembly needs evidence such as SEC–MALS, analytical ultracentrifugation or an appropriate structural analysis. The viewer shows one selected chain for clarity, not necessarily the complete biological assembly.
[1][2]
FROM MOLECULE TO APPLICATIONChoosing endo or exo activity determines whether shorter fructans or free fructose dominate.
Natural sources and fermentation hosts
Aspergillus fungi and inulin-utilising yeasts such as Kluyveromyces provide important examples. Plant inulin occurs in materials such as chicory and Jerusalem artichoke, which are substrates rather than fermentation hosts.
Fungal or yeast fermentation supplies inulinolytic enzymes; recombinant systems are also studied. Inulinase-to-invertase activity ratios help distinguish a preparation’s practical substrate preferences.
· Term · What it means in this report
· Natural donor of the model · Aspergillus awamori — the organism associated with the displayed protein sequence.
· Expression host of the structural sample · Not separately specified in this structural record; do not infer a recombinant host.
· Manufacturing route · Fungal or yeast fermentation supplies inulinolytic enzymes; recombinant systems are also studied. Inulinase-to-invertase activity ratios help distinguish a preparation’s practical substrate preferences.
· Supplied product · Use the linked product documentation for the actual grade, activity assay and declared source. A structural example does not establish the manufacturing organism or purity of the supplied preparation.
[1]
Reaction mechanism and structure–function relationships
Endo-inulinase cleaves internal β-2,1 linkages and favours shorter fructan chains. Exo-inulinase removes terminal fructosyl residues, yielding fructose. GH32 examples use retaining catalysis through a fructosyl intermediate. Substrate-binding architecture controls access to internal versus terminal regions; the illustrated Aspergillus enzyme is specifically an exo-inulinase.
THE REACTION, STEP BY STEP
1
Present a compatible β-2,1 fructan region
2
Cleave internally or from an end according to the enzyme
3
Release shorter fructans or terminal fructose
Inulin + water→Fructooligosaccharides or fructose, depending on enzyme
Conceptual reaction pathway; the stages describe function rather than atomic geometry.
From active-site chemistry to a useful process
Choosing endo or exo activity determines whether shorter fructans or free fructose dominate. Characterise the starting fructan chain-length distribution and follow individual product classes over time. An endpoint reducing-sugar measurement alone cannot distinguish desirable oligomers from extensive monomer release.
The catalytic mechanism explains which chemical transformation is possible. It does not, by itself, establish the rate in a complex material. Substrate presentation, reaction-medium composition and retention of the active fold determine whether that chemistry can proceed usefully under the chosen conditions. This is why a defined-substrate activity measurement and an application trial provide complementary evidence.
[2][3]
Discovery and scientific milestones
Discovery, purification, structural characterisation and industrial adoption are different historical milestones. The named studies below identify specific contributions; a publication date is not automatically the first discovery of every activity covered by the enzyme name.
1943
Biochemical and historical context
Adams, Richtmyer and Hudson investigated enzyme activities within purified invertase preparations in 1943. This history illustrates why substrate-specific assays were needed to separate fructan-degrading activities.
[3]2004
Nagem and colleagues: molecular characterisation
The primary study associated with PDB 1Y9M is “Crystal structure of exo-inulinase from Aspergillus awamori: the enzyme fold and structural determinants of substrate recognition”. The experimental structure links the named protein to a concrete molecular model, allowing its fold, substrate-binding region and assembly to be examined rather than inferred from the general enzyme name.
[2]
Major industrial applications and research uses
Exo activity supports fructose-rich hydrolysate production. Endo activity is useful for controlled fructooligosaccharide generation. Biomass fermentation studies use inulin-rich feedstocks, but microbial utilisation of the hydrolysate remains a separate step.
01
Fructose-rich hydrolysates
Use suitable exo activity.
Measure success: Track fructose yield and residual fructans.
02
Fructooligosaccharides
Control internal cleavage.
Measure success: Measure chain-length distribution and over-hydrolysis.
03
Inulin feedstocks
Prepare carbohydrates for downstream processing.
Measure success: Account for extraction and feedstock composition.
A research use, a development-stage process and an established commercial application do not imply the same level of readiness. Match the preparation to the target matrix and required grade, then validate the specific outcome described above. The product links below provide the route from this scientific overview to a defined supplied formulation.
Activity assays and interpreting experimental results
Quantify fructose and oligosaccharide distributions rather than only total reducing sugar. Report inulin chain length and solubility. Compare sucrose activity separately if invertase contamination or broad specificity may affect interpretation.
A useful experiment for this enzyme
Characterise the starting fructan chain-length distribution and follow individual product classes over time. An endpoint reducing-sugar measurement alone cannot distinguish desirable oligomers from extensive monomer release.
· Experimental question · Evidence to collect
· Is the enzyme active? · Measure an initial rate with a defined substrate, blank correction and a stated activity-unit definition.
· Does it work on this material? · Track fructose yield and residual fructans.
· Is the preparation stable? · Measure residual activity after a specified exposure, separately from activity during the exposure.
· Is the product what you intended? · Measure chain-length distribution and over-hydrolysis.
Keep enzyme loading, substrate amount, mixing, temperature and sampling time explicit. Use a no-enzyme control to capture non-enzymatic changes and a suitable analytical blank for colour, background sugars, peptides or other interfering components. A time course is more informative than one endpoint when the reaction slows, because substrate depletion, loss of activity and product effects can produce similar plateaus.
Reading kinetic and operating data
Compare reported pH and temperature optima only when substrate and assay duration are comparable. An optimum describes the measured rate within an experiment; it is not a guarantee of long-incubation stability. For heterogeneous substrates, changes in accessibility can also affect apparent kinetic behaviour. Cite the protein, substrate and conditions alongside any kinetic constant rather than treating it as a universal property of the enzyme name.
[3]
Common questions
Does the viewer show endo-inulinase?
The selected Aspergillus model is an exo-inulinase.
Will a sucrose assay prove inulinase performance?
No. Substrate-specific verification is needed.
Can extended treatment change an intended FOS product?
Yes. The activity mixture and duration determine whether shorter products undergo further conversion.
